Homeade Wiring Diagrams....

Hi, has anyone chased wires and figured out how their boat is wired and drawn out a basic wiring diagram?  I'm trying to do this and it's been frustrating.  Mainly because when I'm working on the boat, i'm usually alone, and chasing wires seems to need a partner (as I wiggle wires and see where they go).

If anyone has created a diagram, I would love love to see it.   Would you mind posting it?

Mike

Jackfish Girl, 1999, C36 MKII, Tall Rig, Wing Keel, In-mast furling, Phinneys Harbor, Bourne, MA

--
Jackfish Girl, 1999, C36 MKII, Tall Rig, Wing Keel, In-mast furling, Phinneys Harbor, Bourne, MA
KevinLenard's picture
KevinLenard
Last seen: 1 day 16 hours ago
Joined: 1/28/15
Posts: 137

Mike, there's a full boat schematic in the manual.  Download the Mk II version of the manual from this forum, print out that page and add any new gizmo's you or the PO have installed.

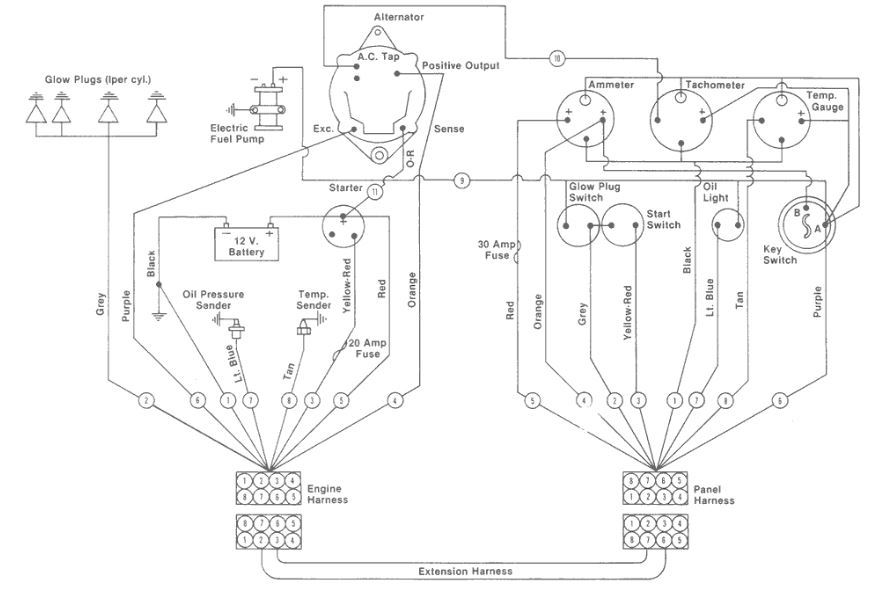

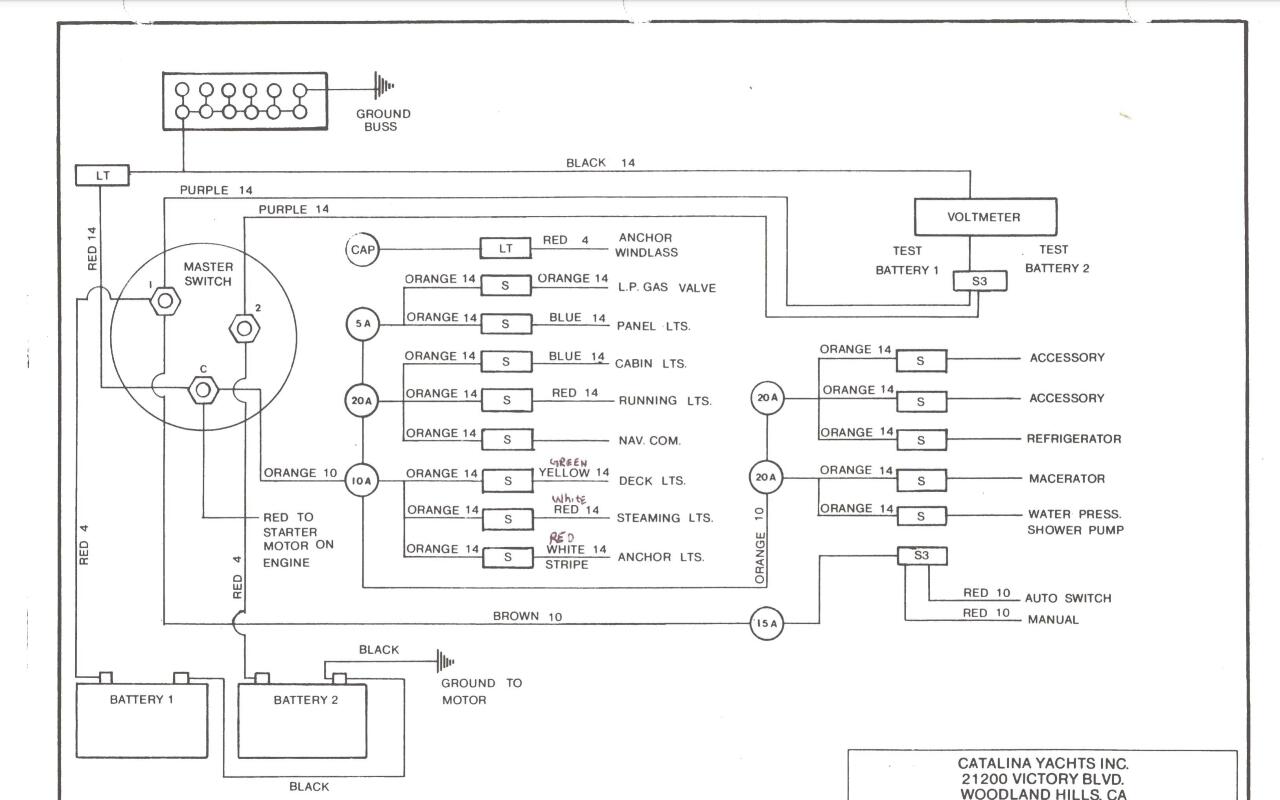

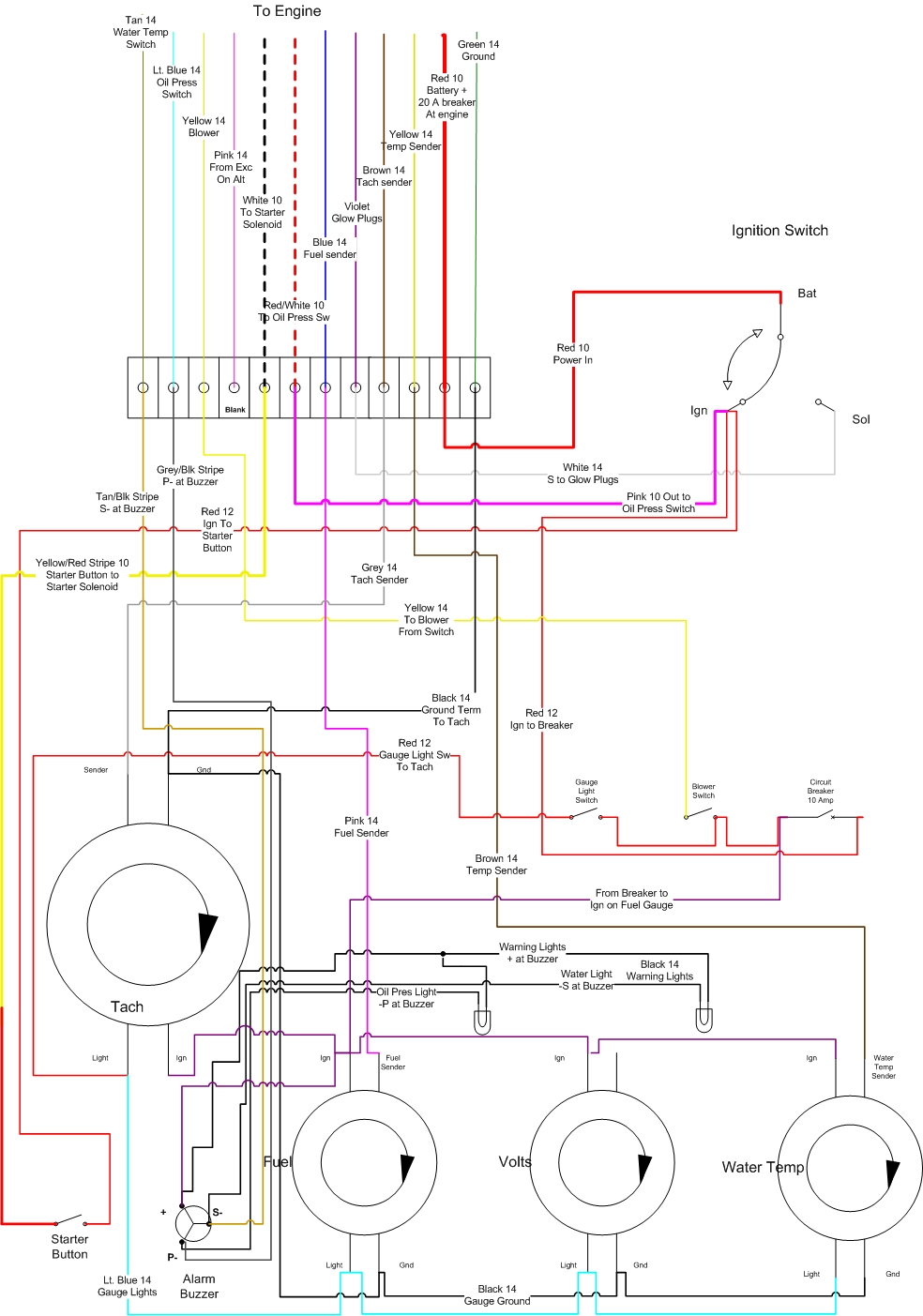

I'll attach some detailed schematics that come up from a quick Google search, but they might not be accurate for your year.

Attachments
--

Kevin Lenard
"Firefly"
'91 C-36 Tall Rig, Fin Keel, Hull #1120, Universal M-35 original (not "A" or "B")
CBYC, Scarborough, Ontario, Canada

Phil L's picture
Phil L
Last seen: 2 hours 4 min ago
Joined: 1/15/08
Posts: 101

Mie was majorly rewired by the PO, who wasn't as skilled as he thought he was.  My wiring is pretty much a mess.   It would take a real electrical engineer to map mine out I think.

--
Phil L
Southern Cross
Channel Islands, CA
C36MKI #400
KevinLenard's picture
KevinLenard
Last seen: 1 day 16 hours ago
Joined: 1/28/15
Posts: 137

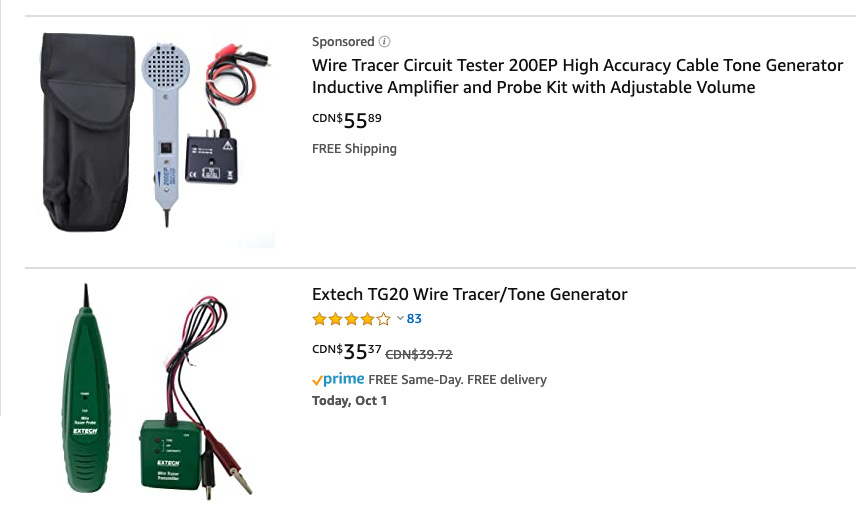

Mike, in researching battery issues I saw a note from Leslie or Mathew (?) that suggested searching Amazon for a 'tone tracer'.  See screen shot attached.  Sounds like you need one given your issues.  Attach it to one end of the wire and it provides a tone on the handheld tracer that follows the wire even through fiberglass up to a couple of feet away.  Along with the print-out of the original wiring you should be able to create a new schematic.

https://www.amazon.ca/s?k=tone+tracer&ref=nb_sb_noss_1

Attachments
--

Kevin Lenard
"Firefly"
'91 C-36 Tall Rig, Fin Keel, Hull #1120, Universal M-35 original (not "A" or "B")
CBYC, Scarborough, Ontario, Canada

LeslieTroyer's picture
LeslieTroyer
Last seen: 3 hours 56 min ago
Joined: 3/13/16
Posts: 478
Yup I’m an advocate of tone & probes, and have several. They work great for finding the wire route, or just finding out what all a breaker powers.
--

Les & Trish Troyer
Mahalo
Everett, WA
1983 C-36 Hull #0094
C-36 MK 1 Technical Editor.

Commodore Elect



McFly
Last seen: 6 days 17 hours ago
Joined: 10/22/18
Posts: 145

Great suggestions guys. I think a toner/beeper is a great suggestion. I have the manual. My current set up is pretty different from how it came out of the factory. It goes on the hard next week, I'll be pulling it all apart thus winter.

Thanks again!
