Folding cockpit teak table

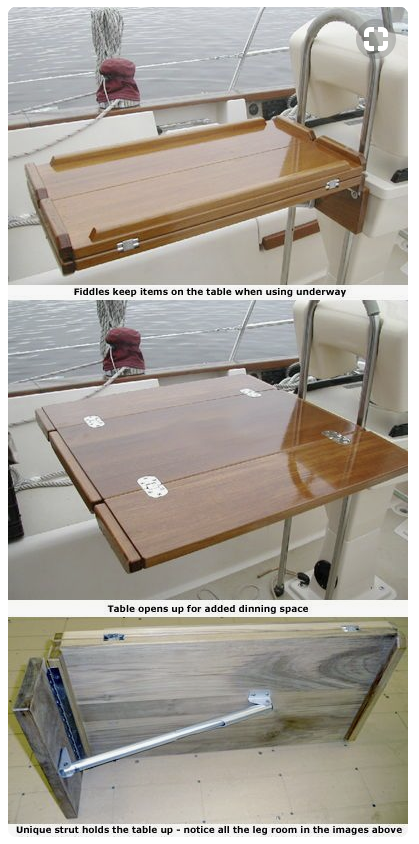

Interesting design for a folding cockpit table...shouldn't be too difficult to build.

I have this on my winter list to build!

http://shop.catalinaowners.com/prod.php?50777/

Steven Jones

C36/375IA FaceBook group administrator

C36/375IA Jib Sheet Editor 2012

Seal Beach, CA, USA
C36 #2164 Maléna  2003 Mk-II SRig/FullK,  Long Beach, CA

stevenjones21@gmail.com

--
Steven Jones
C36/375IA FaceBook group administrator
C36/375IA Jib Sheet Editor 2012
Seal Beach, CA, USA
C36 #2164 Maléna  2003 Mk-II SRig/FullK,  Long Beach, CA
stevenjones21@gmail.com
Catboat Willy's picture
Catboat Willy
Last seen: 22 hours 33 min ago
Joined: 12/22/14
Posts: 234



http://www.zarcor.com/products/order-rail-clamps.php

Steve;

 I built a cockpit table for my Catalina several years ago. Not being an expert carpenter, I had difficulty attaching the unit to the pedestal rails.

I found these devices, 'Rail Clamps by Zacor'  (about $12.00 each) to be a great solution to attach the table to the rails. They work well and will allow you to remove the table easily when it needs to be refinished. I can send you dimensions for the table I built. The flat hinges can be obtained from Rockler Woodworking Hardware, Medina, MN. www.rockler.com

I‘ll send a few pictures later in the day .

Bill Dolan



PS. Great job on the C-36 FaceBook page.

--
Bill Dolan 1990 Catalina C-36 MKI - Hull #1041  'Williwaw'
Std. Rig, Walk Through, Wing Keel
M35, Oberdorfer Conversion,
Home Waters; Port Charlotte, FL
'You are never out of work if you own a boat'


Wally-1840
Last seen: 2 months 1 week ago
Joined: 11/9/09
Posts: 112

Hi Steven,
I’ve built 3; one for my boat, and two for friends; one a Catalina 34, and the other a Hunter 37. I just finished the Hunter’s a couple of weeks ago. Total materials cost was $275. I used 6 board feet of teak, 2 brass hooks to hold the leaves down when folded, and 2 pairs of brass “sewing machine table” hinges from Rockler. Mounting hardware was separate and I’ll explain below. The dimensions for all 3 are: 28” long x 13” wide with leaves folded. The leaves extended make it 26” in width. The finish was Minwax Helmsman.

Mounting hardware was Edson for the Hunter, as they already had an Edson plastic lunch table and they will use that for the new table. For mine and the Cat 34, we both had Seateak tables and used that support rod. I used “Seastow Rail Clamps” from Defender to mount the table to the pedestal. I needed a pair for the teak bracket that I mounted the SS piano hinge up top and a pair to mount the teak bar for the Seateak bracket that receives the support rod below. Using these clamp-on devices allows for obtaining a level table.

I built the two out of all teak and mine, (the first one), has a ~ 2” wide strip of Yellow Heart in the center of the base table. When varnished, it looks iridescent.

Here’s a photo of the table under construction.



Attachments
--
Wally
"Onanne"
2000 MKII, deep keel, tall rig
​Lake Champlain

Catboat Willy's picture
Catboat Willy
Last seen: 22 hours 33 min ago
Joined: 12/22/14
Posts: 234

Wally;
 Please tell me more about the support leg for your cockpit table. I have a solid fold-down leg that always seems to be in the way and would love to eliminate the thing.
 Thanks,
 Bill

--
Bill Dolan 1990 Catalina C-36 MKI - Hull #1041  'Williwaw'
Std. Rig, Walk Through, Wing Keel
M35, Oberdorfer Conversion,
Home Waters; Port Charlotte, FL
'You are never out of work if you own a boat'


Wally-1840
Last seen: 2 months 1 week ago
Joined: 11/9/09
Posts: 112

Hi Bill,
For two I had the support hardware from previous tables. All I had to do was make two “bars” out of teak that attach to the pedestal. The upper has the ss piano hinges that attach the table to the pedestal guard. The lower bar has the recepticals that the “U” shaped bracket that’s attached to the underside of the table. These bars are held to the pedestal guard with the plastic clamps I mentioned above.

Now that I look at the Seateak tables, it seems they use a leg, mine didn’t. Maybe they were AFI or something. Darned if I can find that now. It was a much less expensive table that Edson, but the hardware works well. It looks similar to below. I cut off the curved parts of the brackets and screwed then onto the aforementioned teak bars.

For the third table, the boat owner already had an Edson luncheon table and will simply swap tops.

Hope this helps.



Attachments
--
Wally
"Onanne"
2000 MKII, deep keel, tall rig
​Lake Champlain

Catboat Willy's picture
Catboat Willy
Last seen: 22 hours 33 min ago
Joined: 12/22/14
Posts: 234

Thanks Wally.
 I'm off to the Rockler Catalogue to see if they have anything that might be close. I appriciate the pictures.
Bill

--
Bill Dolan 1990 Catalina C-36 MKI - Hull #1041  'Williwaw'
Std. Rig, Walk Through, Wing Keel
M35, Oberdorfer Conversion,
Home Waters; Port Charlotte, FL
'You are never out of work if you own a boat'


Wally-1840
Last seen: 2 months 1 week ago
Joined: 11/9/09
Posts: 112

Bill,
If you don’t mind the bucks, the Edson hardware is sure nice.

Just as an aside, I used a top-bearing, pattern bit in my router to cut the relief for the hinges. It takes two cuts; one for the hinge leaf and a second to allow for the pin barrel. I have a hinge mortising jig with an insert that exactly matches the Rockler sewing machine table hinges. I highly recommend setup cuts on a piece of pine or something to get it dialed in. Teak is stupid-expensive!

Forgive me me if you are already familiar with this kind of work.

Keep us up to date on your project!
Wally

--
Wally
"Onanne"
2000 MKII, deep keel, tall rig
​Lake Champlain

Stevenjones's picture
Stevenjones
Last seen: 18 hours 15 min ago
Joined: 6/29/07
Posts: 60

Bill, Willy.
Thanks for your contributions to this cockpit table discussion.
The hardware sources - hinges and mounting rail clamps- are appreciated.

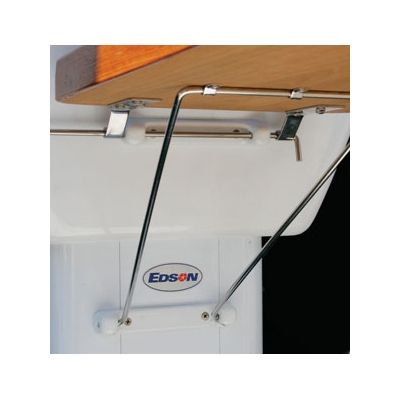

As for the under table support, I'm a bit lost on how this support works.  Would you send a photo of the bottom of the table, assuming you have one?
And, what are your thoughts on using a folding table leg, as this one from Rockler:
http://www.rockler.com/click-foldable-table-leg

--
Steven Jones
C36/375IA FaceBook group administrator
C36/375IA Jib Sheet Editor 2012
Seal Beach, CA, USA
C36 #2164 Maléna  2003 Mk-II SRig/FullK,  Long Beach, CA
stevenjones21@gmail.com
Wally-1840
Last seen: 2 months 1 week ago
Joined: 11/9/09
Posts: 112

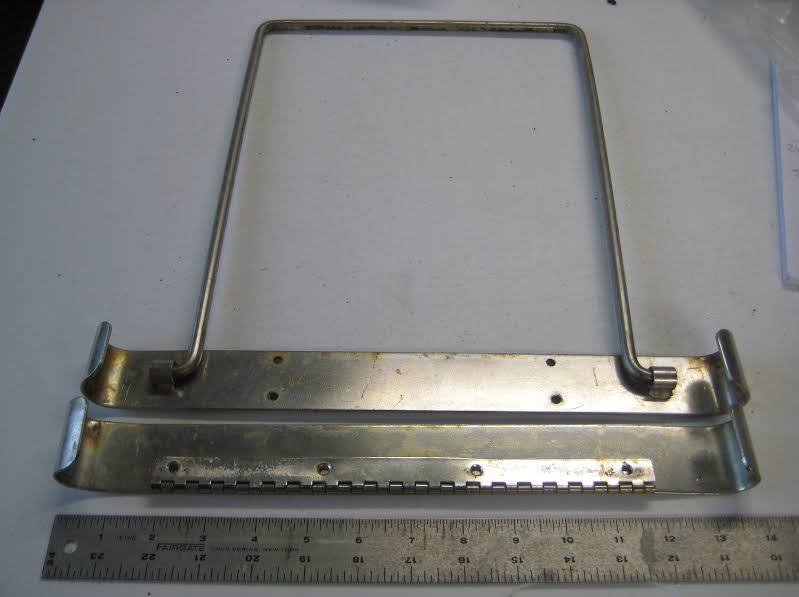

In the picture I attached of the support, that U-shaped rod is held to the bottom of the table with two straps. The table is lifted, the U rod is swung down and hooked into eyes on the pedestal guard. The rod will form a 45 deg angle between the table and the guard. I don’t have a picture of the bottom of my table and the boat is under cover, under snow and 2 hours away. I really like the Edson brackets.
As for the Rockler support, a leg will work but get in the way when you slide in. Also I’d want to make sure any metal parts are stainless.
Here’s a picture of how it works.

Attachments
--
Wally
"Onanne"
2000 MKII, deep keel, tall rig
​Lake Champlain

Anteup
Last seen: 1 month 2 weeks ago
Joined: 9/29/17
Posts: 2

Great info thanks guys. Does anyone have the dimensions with the two foldable leaves like Steve's three pictures? Also has anyone used the hinge such as the one Steve has shown? Happy holidays!!

Wally-1840
Last seen: 2 months 1 week ago
Joined: 11/9/09
Posts: 112

OK,
My tables are 28” long x 13” wide, leaves folded. That means the leaves are 6 1/2” wide each to get maximum width extended. I make then a touch narrower so they won’t interfere with each other due to the “looseness” of the hinges. Which brings us to the hinges. In Steve’s pictures, like my tables, they are “sewing machine table” hinges or sometimes known as “twin-pin” hinges. They will allow the leaves to fold flush on top of the table. They have an inherent “looseness” or wiggle if you will. That’s why I size the leaves a touch narrower than the fixed top. I got mine from Rockler Woodworking. Hope this helps.

--
Wally
"Onanne"
2000 MKII, deep keel, tall rig
​Lake Champlain

Stevenjones's picture
Stevenjones
Last seen: 18 hours 15 min ago
Joined: 6/29/07
Posts: 60

Wally,the folding leaves 'a touch narrower than the fixed top'... This is good info, I see why.

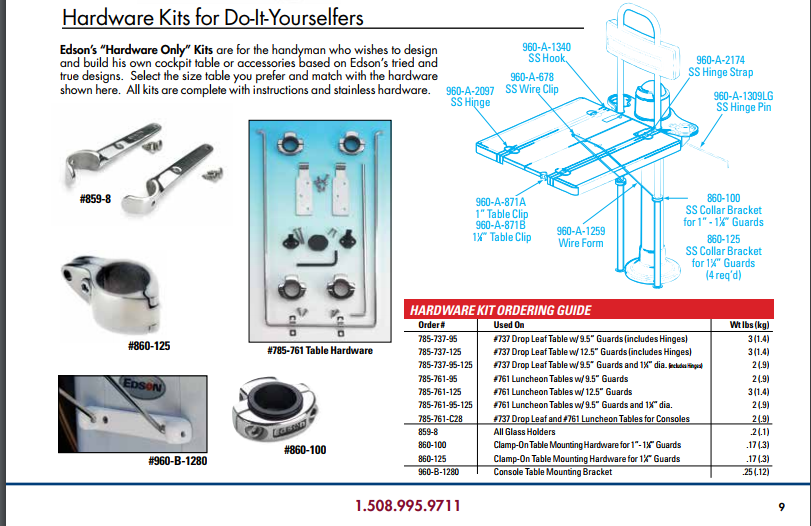

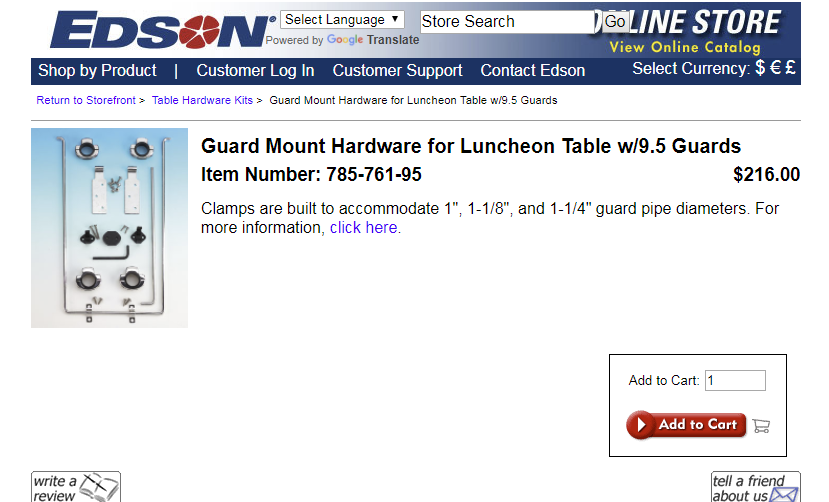

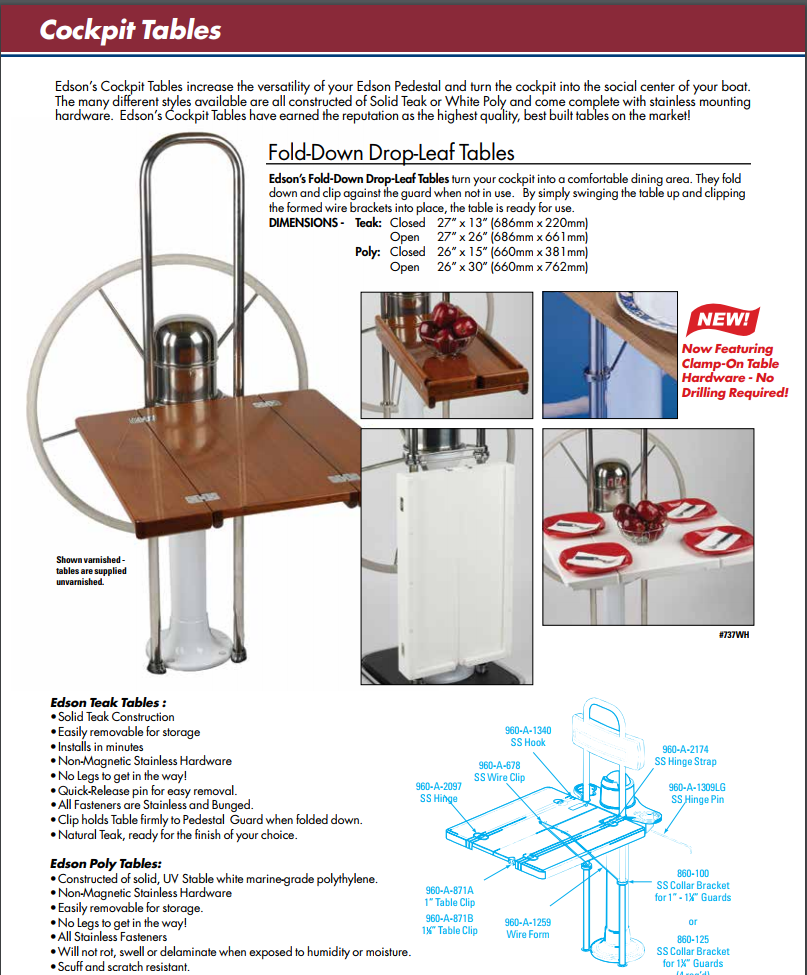

As for the hardware, I appreciate your comment about Edson.  I looked up their folding cockpit tables on their website, and see they sell a complete hardware kit, including the 'knee brace' support you mentioned.  I concur this support is much better than a vertical pole support..Thanks for this suggestion  See photos

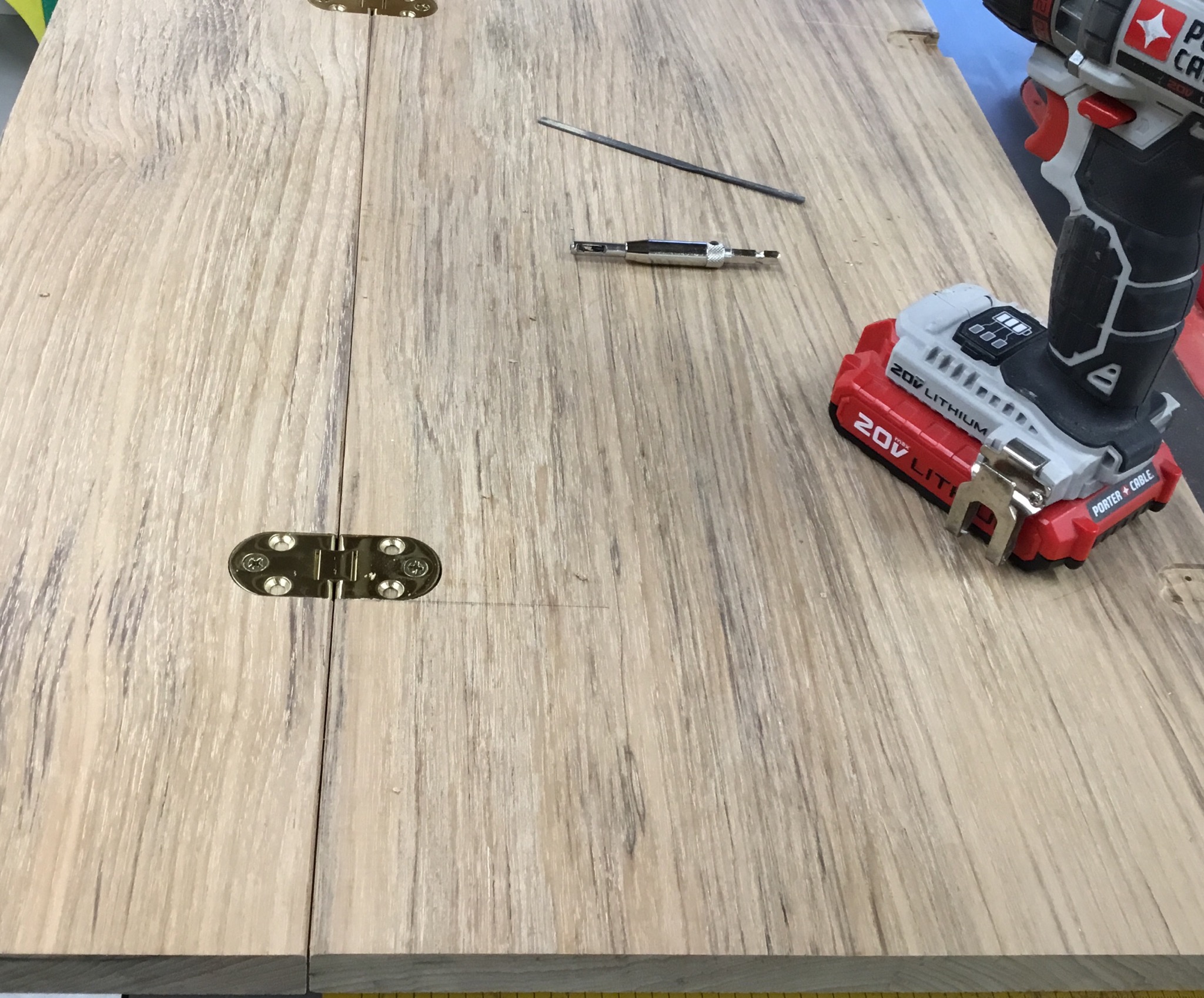

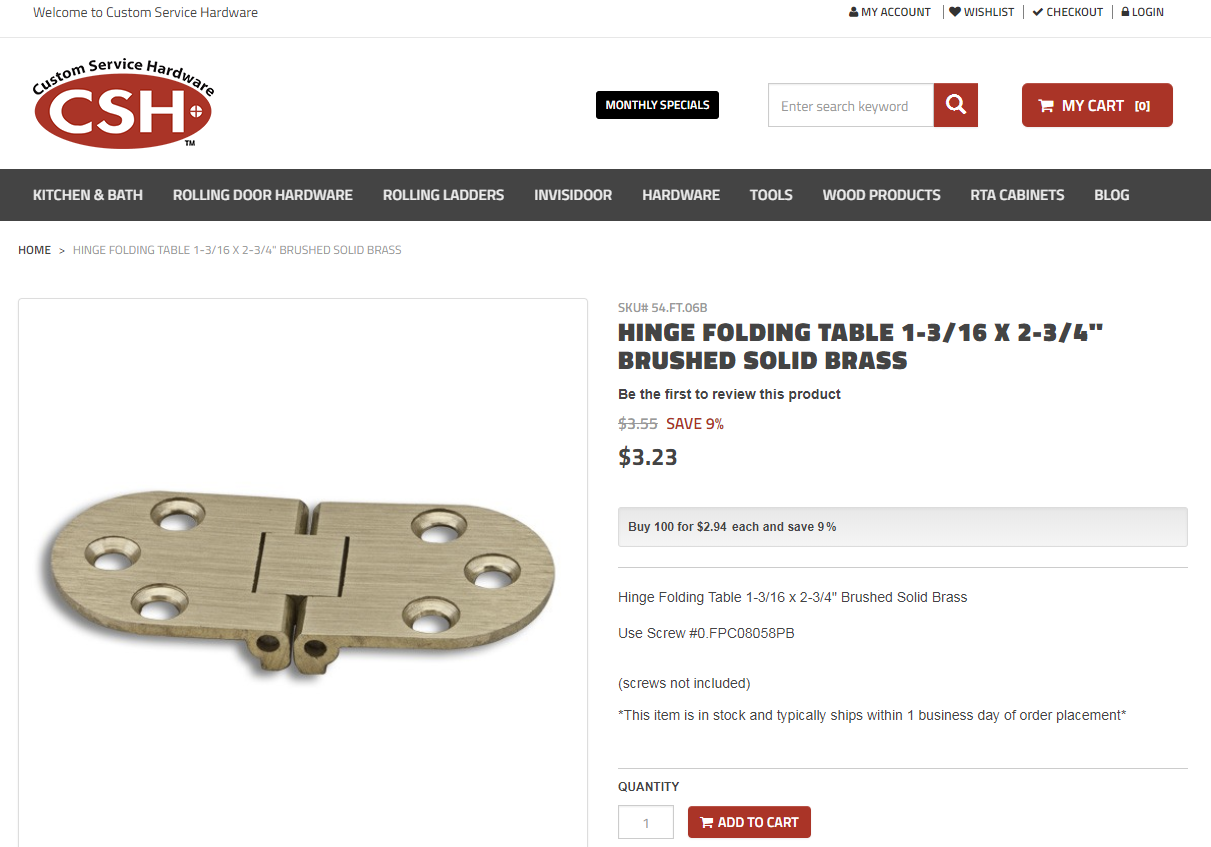

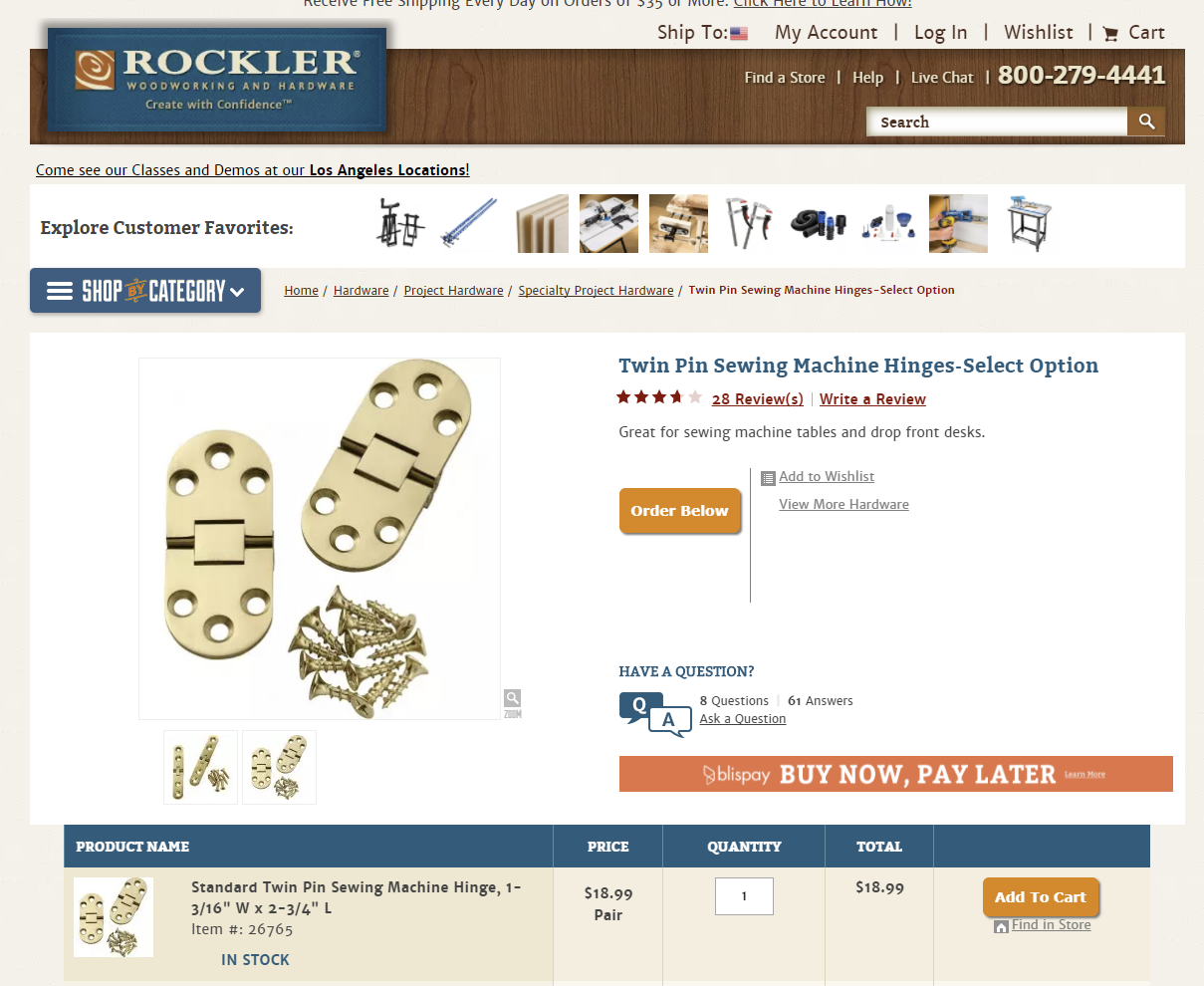

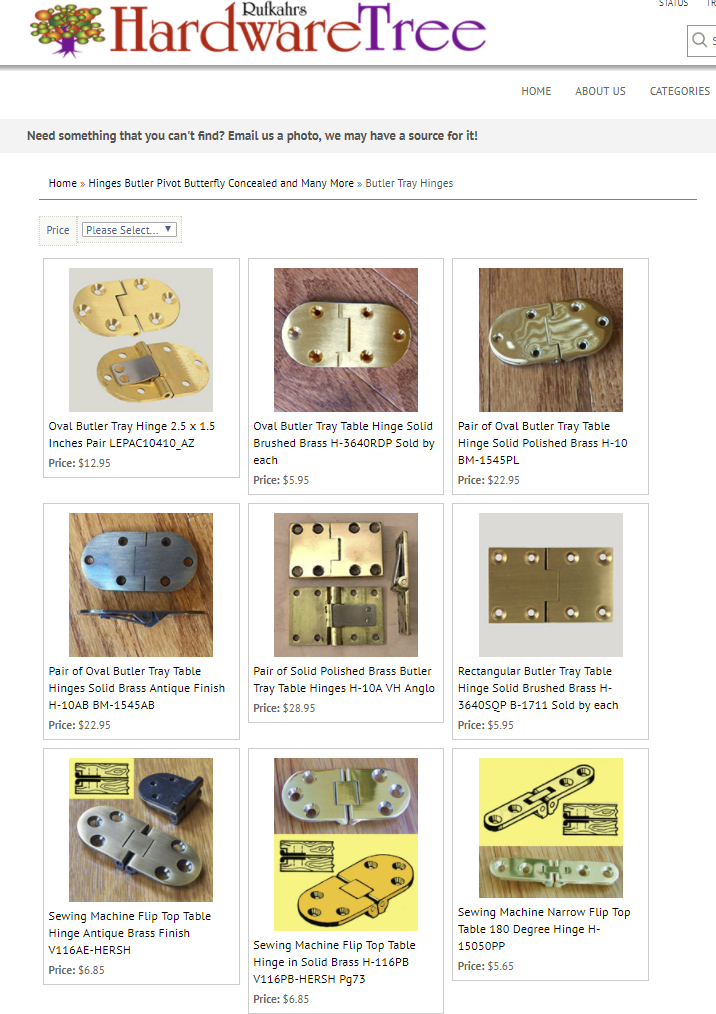

Also, I see the double pin 'Butler Tray Table' or 'Twin Pin Sewing Machine Table' hinges you refer to. See photos

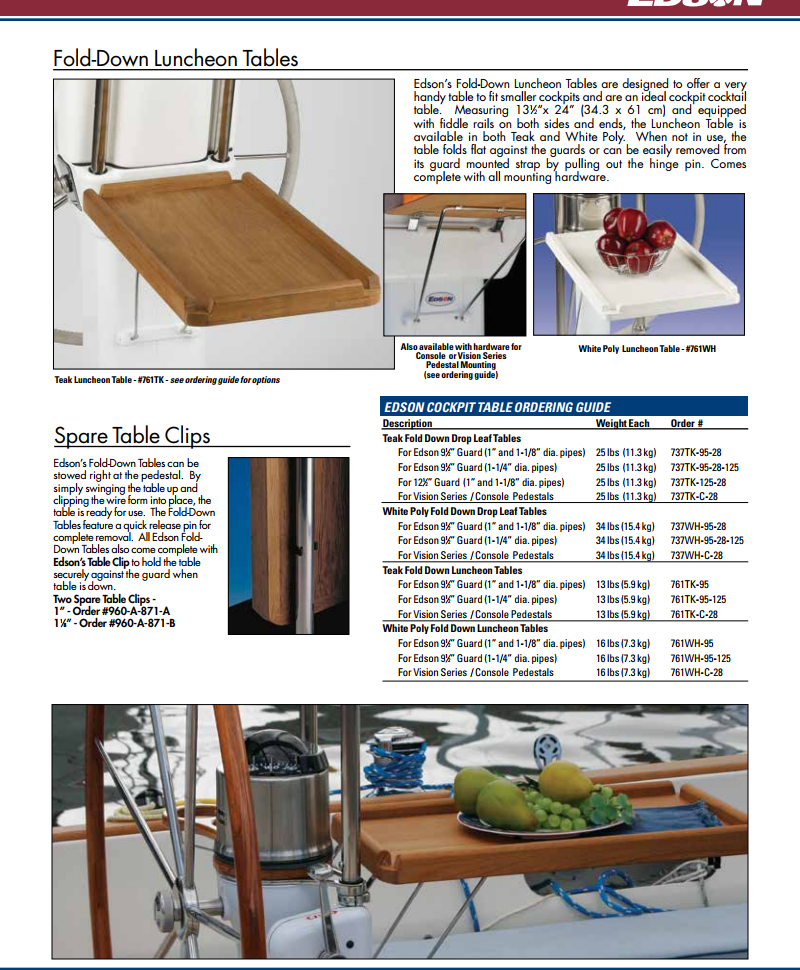

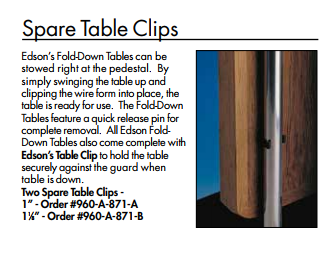

And lastly, I also like the attachment to the pedestal holding the table in place when down, to alleviate the need of a bungee cord.  see photo 'spare table clips'
