Safety Diagram

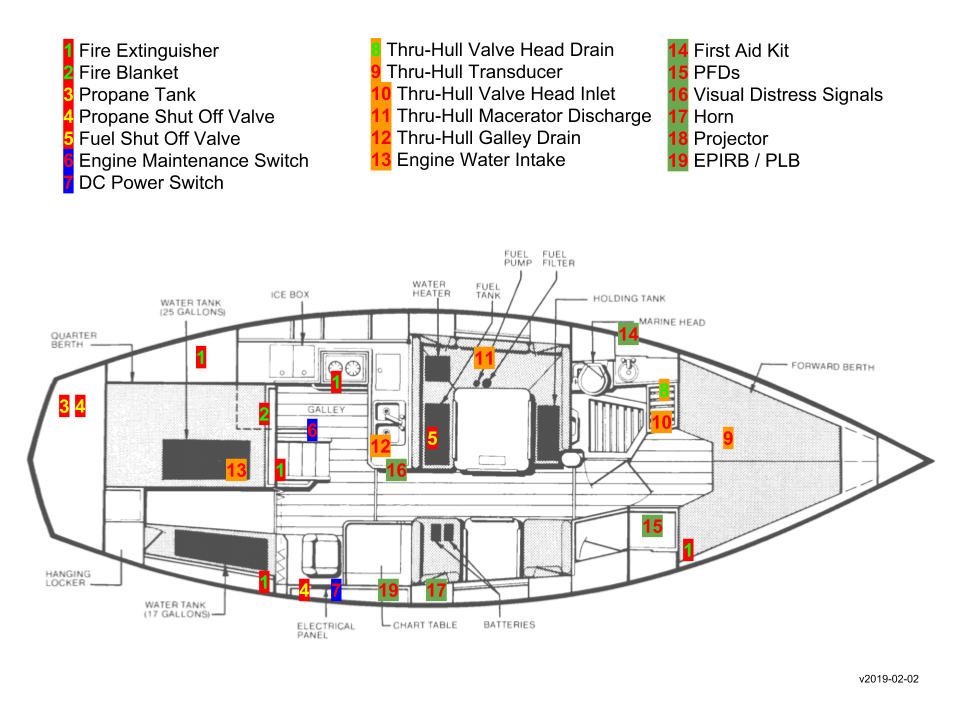

Building a "safety diagram", does it have a different name? Anything I missed I should add in this type of document? Feel free to comment here on the google doc document, feel free to make a copy of this document too and make it better for your boat.

You can find the source document here:







Ludovic François
​Hotel Catalina - Catalina 36 Hull #883
Marina Del Rey, CA

McFly
Offline
Joined: 10/22/18
Posts: 200

Great diagram Ludo.  I am under agreement for a 1999 C36 so a simplified view of important valves and switches is very helpful to me.  I wasn't sure why you called it  "security" diagram though.  That's what led me to investigate your thread.  I was curious to see if you were on a slip in a rough neighborhood and installed some kind of security system for the boat.  Anyway, cool diagram, I downloaded it and added it to my collection.  Thanks!

Mike McCarron
C-36, MKII, Tall Rig, Wing Keel, In-mas main furling
(under agreement)

Phinney's Harbor, MA

Jackfish Girl, 1999, C36 MKII, Tall Rig, Wing Keel, In-mast furling, Monument Beach, Bourne, MA

ludo's picture
ludo
Offline
Joined: 3/14/16
Posts: 92

Renamed in Safety Diagram, English Second Language issue :) For the view of important valves, you should look at the diagram available in the user manual, you have some good data there. You can find it in the "Members / Technical Articles / Manuals" section.
