Broken Table Pedestal

The Zwaardvis pedestal for my settee table no longer tightens. Inside the lower section I found the broken piece of plastic which used to push against the upper section to hold it in place. I emailed Zwaardvis about a spare part, but I haven't heard back. Has anyone had this issue? The only alternative solution I've thought of is to put a longer threaded rod on the locking knob and drill holes into the upper section for the rod to go into at the upper and lower locations.

Eric H.

1989 MKI Tall Rig #1013

Seattle, WA

--
Eric H.
1989 MKI Tall Rig #1013
Seattle, WA
LeslieTroyer's picture
LeslieTroyer
Last seen: 6 hours 21 min ago
Joined: 3/13/16
Posts: 436

lots of parts here - is one of them what your looking for??
http://www.exalto.com/en-us/parts/helmsman-s-seats-pedestals/zwaardvis-p...

Les

--
Les & Trish Troyer
Mahalo
Everett, WA
1983 C-36 Hull #0094
C-36 MK 1 Technical Editor.
KevinLenard's picture
KevinLenard
Last seen: 1 day 19 hours ago
Joined: 1/28/15
Posts: 96

Eric, I was CERTAIN that I found that collar piece on Defender last year, but now the Internet is giving me the runaround.  That tightening piece also broke off on our vessel inside of the collar.  A friend gave me what looked similar, but of course the dimensions were off.  In desperation with guests coming to the boat I drilled a hole through both aluminum tubes with the Admiral sitting on the tabletop to hold it down.  Not pretty, but it works.

Leslie's suggestion leads to a new assembly to replace the entire pedestal, either at about $200 USD for the manual model, or $320 for the hydraulic version.

Has anyone else sourced just the collar and have a source and/or part number?


--

Kevin Lenard
"Firefly"
'91 C-36 Tall Rig, Fin Keel, Hull #1120, Universal M-35 original (not "A" or "B")
CBYC, Scarborough, Ontario, Canada

LeslieTroyer's picture
LeslieTroyer
Last seen: 6 hours 21 min ago
Joined: 3/13/16
Posts: 436
The plastic top piece in my pedestal that keep the strut centered was broken. I couldn’t lower the table. I used my CNC router to make an aluminum replacement. Works great now. I can cut another for parts and postage.
--
Les & Trish Troyer
Mahalo
Everett, WA
1983 C-36 Hull #0094
C-36 MK 1 Technical Editor.
KevinLenard's picture
KevinLenard
Last seen: 1 day 19 hours ago
Joined: 1/28/15
Posts: 96

Thanks for the offer, Leslie!  I'm not sure we're talking about the exact same part.  I need to get down to the boat to re-familiarize myself with the piece as I have found no 'exploded view' diagrams that might specify the details.

I do believe that the plastic collar/sleeve ALSO kept the telescoping aluminum tubes aligned, but most important was the 'tongue/tab' that the lock pin pressed against to hold the top tube down against the pressure of the hydraulic cylinder and prevent the pressure bolt from digging into the aluminum.  This sleeve fits inside the cast aluminum outer collar.

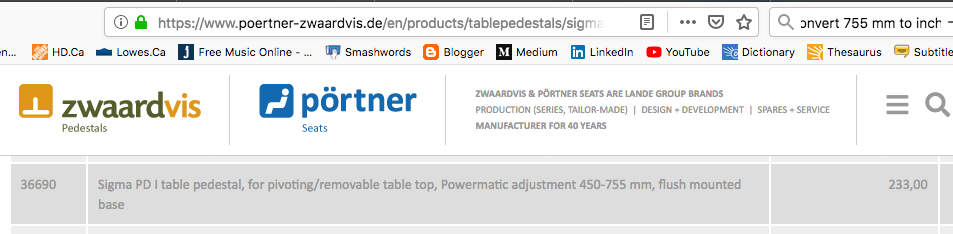

Looks like, from the German manufacturer/distributor, Lande Marine, this entire pedestal with the gas cylinder is a "Zwaardvis Sigma PD I table pedestal, for pivoting/removable table top, Powermatic adjustment 450-755 mm (17.5" - 30"), flush mounted base, part #36690 at a price of $233 Euros".

May also be possible to order the manual model and swap out the locking collar from FP Marine at a base cost of $192.64:
https://www.fpmarine.com/Zwaardvis-Aluminum-table-hardware-p/z80-2090adj...

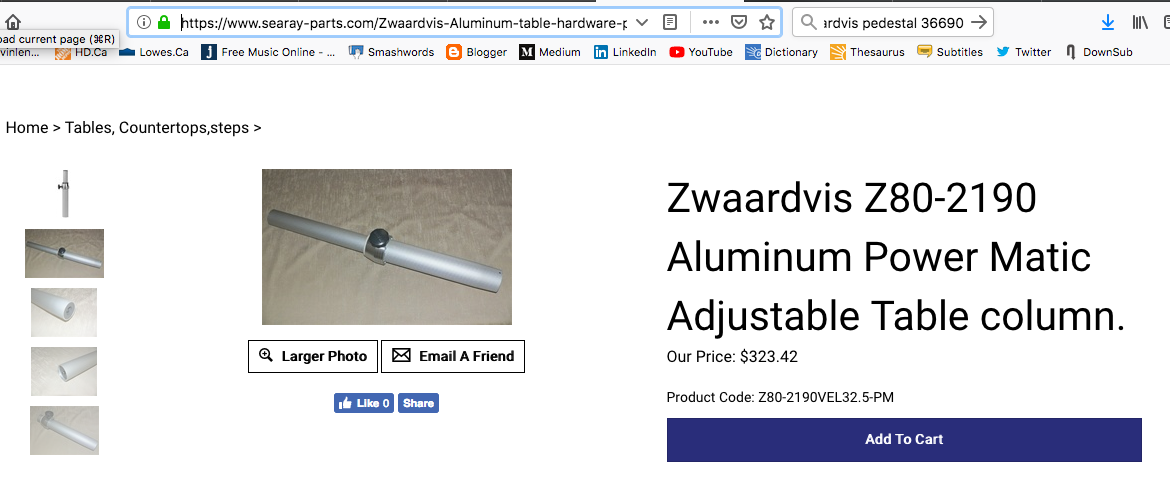

Or get the entire hydraulic pedestal new from FP Marine at $323.42:
https://www.searay-parts.com/Zwaardvis-Aluminum-table-hardware-p/z80-219...

  K.

Attachments
--

Kevin Lenard
"Firefly"
'91 C-36 Tall Rig, Fin Keel, Hull #1120, Universal M-35 original (not "A" or "B")
CBYC, Scarborough, Ontario, Canada

TadTV
Last seen: 2 weeks 1 day ago
Joined: 9/17/16
Posts: 21

Catalina Direct has the piece,  but when I tried to replace it I spent an hour pounding off the old one and another hour pounding on the new one  only to discover that the top section would not fit into the lower section. So another hour pounding off the new piece and used a blowtorch and ended up back where I started. That was no fun.

--
Tad
Simpler Times
1989 C-36 MK I #1004
Redondo Beach, Calif.

LeslieTroyer's picture
LeslieTroyer
Last seen: 6 hours 21 min ago
Joined: 3/13/16
Posts: 436

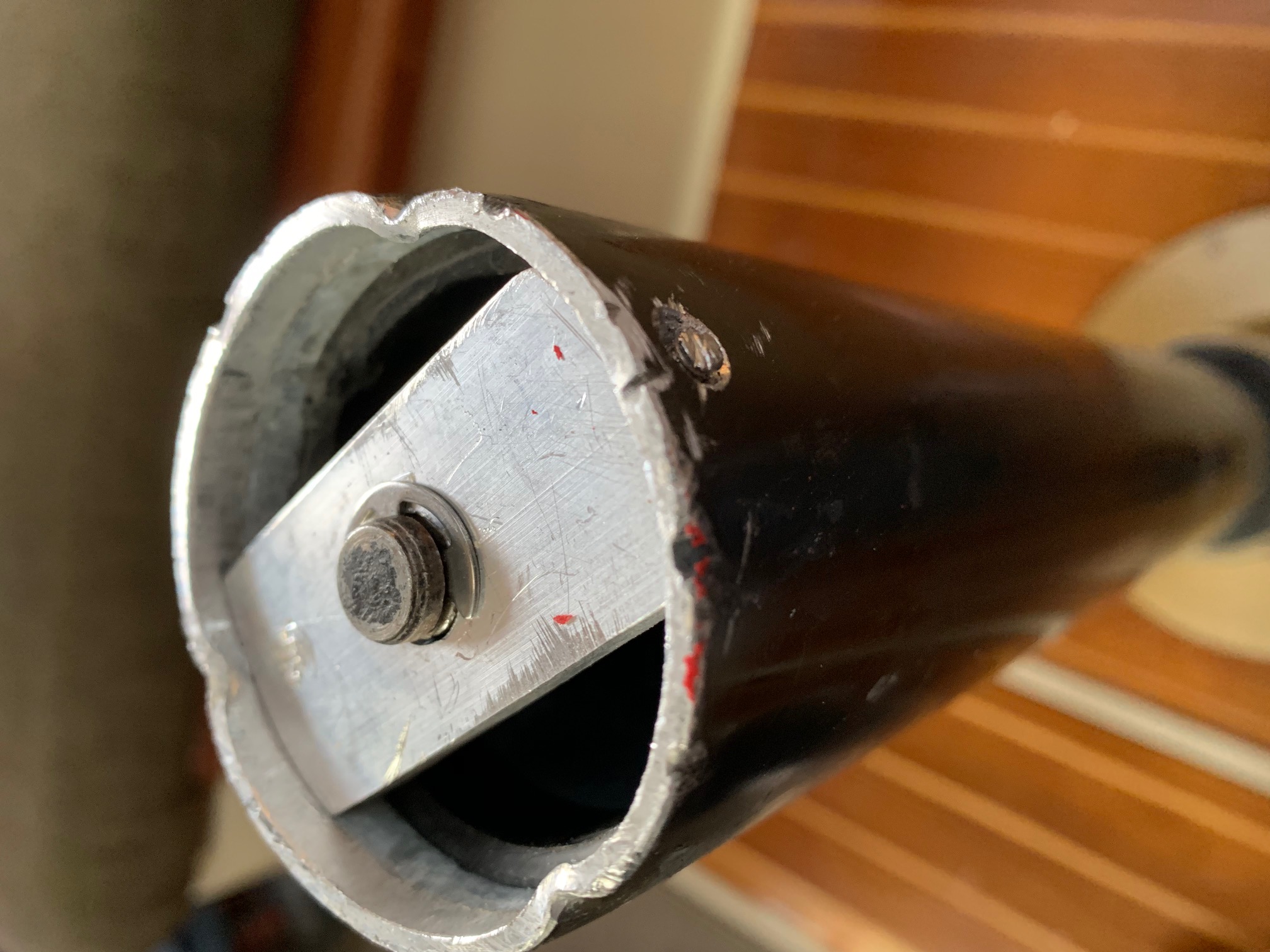

Here is a photo of the part I replaced. I agree it seems like a different part from model.













Attachments
--
Les & Trish Troyer
Mahalo
Everett, WA
1983 C-36 Hull #0094
C-36 MK 1 Technical Editor.
TadTV
Last seen: 2 weeks 1 day ago
Joined: 9/17/16
Posts: 21

Is that photo the very bottom that goes into the floor? If so it has been altered- mine was touching the hull so I tried to grind down the plastic end an 1/8 inch  and ended up weaking it and so the piston broke out the end. That photo tells me I can fix that end with an aluminmum plate I think.

--
Tad
Simpler Times
1989 C-36 MK I #1004
Redondo Beach, Calif.

LeslieTroyer's picture
LeslieTroyer
Last seen: 6 hours 21 min ago
Joined: 3/13/16
Posts: 436
That is a photo from the top. The bottom has a similar plastic piece. It the strut is not in the very center it is hard if not impossible to collapse. Note you don’t see the recess in the plate so the cut clip can fit.
--
Les & Trish Troyer
Mahalo
Everett, WA
1983 C-36 Hull #0094
C-36 MK 1 Technical Editor.
Siler Starum's picture
Siler Starum
Last seen: 1 day 12 hours ago
Joined: 4/20/18
Posts: 23

I had the same issue last year and ordered a complete new pedestal direct at the maker Portner Zwaardvis.

item nr. 36604
OMEGA PR II
for bed & table height removable table top column 76/60mm
powermatic adjustable 340­660mm column 140mm through floor
***
Contains:
Z.63160
Z.62600AS
Z.64070

It was an easy swap - the original floor-base could be used.



--
Durk Nijdam
S/V "SILER"
Catalina 36MKII - 2001 / hullnr. 2013
Stavoren - Holland
EricH
Last seen: 1 month 1 week ago
Joined: 2/7/16
Posts: 5

I believe the correct part to replace the whole column is Zwaarvis Z80-2603VEL26PM. I found the Z80-2090 on EBay, but discovered that it doesn't go down far enough to get the table all the way to the bottom when converting to the bed. I believe the Z80-2190 is the same too tall version with the gas spring to make it go up on its own.  I ended up ordering from Fisheries Supply a couple weeks ago and I should get that in another week or two (it was on backorder). It looks like you can get it for about $220 at either Fisheries or Pier Supply:
https://www.fisheriessupply.com/zwaardvis-zwa-z80-2603vel26pm-z80-2603vel26pm
http://www.piersupply.com/Item/Z80_2603VEL26_PM

I had a similar experience as Tad with trying to use the replacement collar insert from Catalina Direct.  It was a ton of work getting the old one out and then pounding the new in, only to find that the top part of the column didn't fit in the collar once it had been pounded into the lower section. The old collar looks a bit different and is painted gray, whereas the newer one is stainless steel. I'm guessing the Cataline Direct replacement part fits the newer collar.

--
Eric H.
1989 MKI Tall Rig #1013
Seattle, WA
KevinLenard's picture
KevinLenard
Last seen: 1 day 19 hours ago
Joined: 1/28/15
Posts: 96

Sounds like the model I listed above is the too-tall version at a minimum of 17", meaning that the SIGMA model is incorrect (apologies, I could not get down to the boat to measure).  Sounds like Durk had success with the OE #36604 OMEGA PR II, American part number Z80-2603VEL26PM is the right one.

EricH, if you can let us know with a post after installing that would be great!

--

Kevin Lenard
"Firefly"
'91 C-36 Tall Rig, Fin Keel, Hull #1120, Universal M-35 original (not "A" or "B")
CBYC, Scarborough, Ontario, Canada

EricH
Last seen: 1 month 1 week ago
Joined: 2/7/16
Posts: 5

I finally got the pedestal and it is the right one: part number ​Z80-2603VEL26PM from Zwaardvis which is distibuted in the US by Taco Marine. The gas spring inside seems to be better balanced for the table than the previous one. It used to rise up on its own and would take quite a bit of force to push it down which was a bit awkward. Now a fairly light touch up or down moves the table, and it stays in place with no weight on it.

--
Eric H.
1989 MKI Tall Rig #1013
Seattle, WA
