Cracked and leaking shaft log tube.

7 posts / 0 new
Last post
MitchMan406's picture
MitchMan406
Offline
Joined: 12/31/11
Posts: 71
Cracked and leaking shaft log tube.

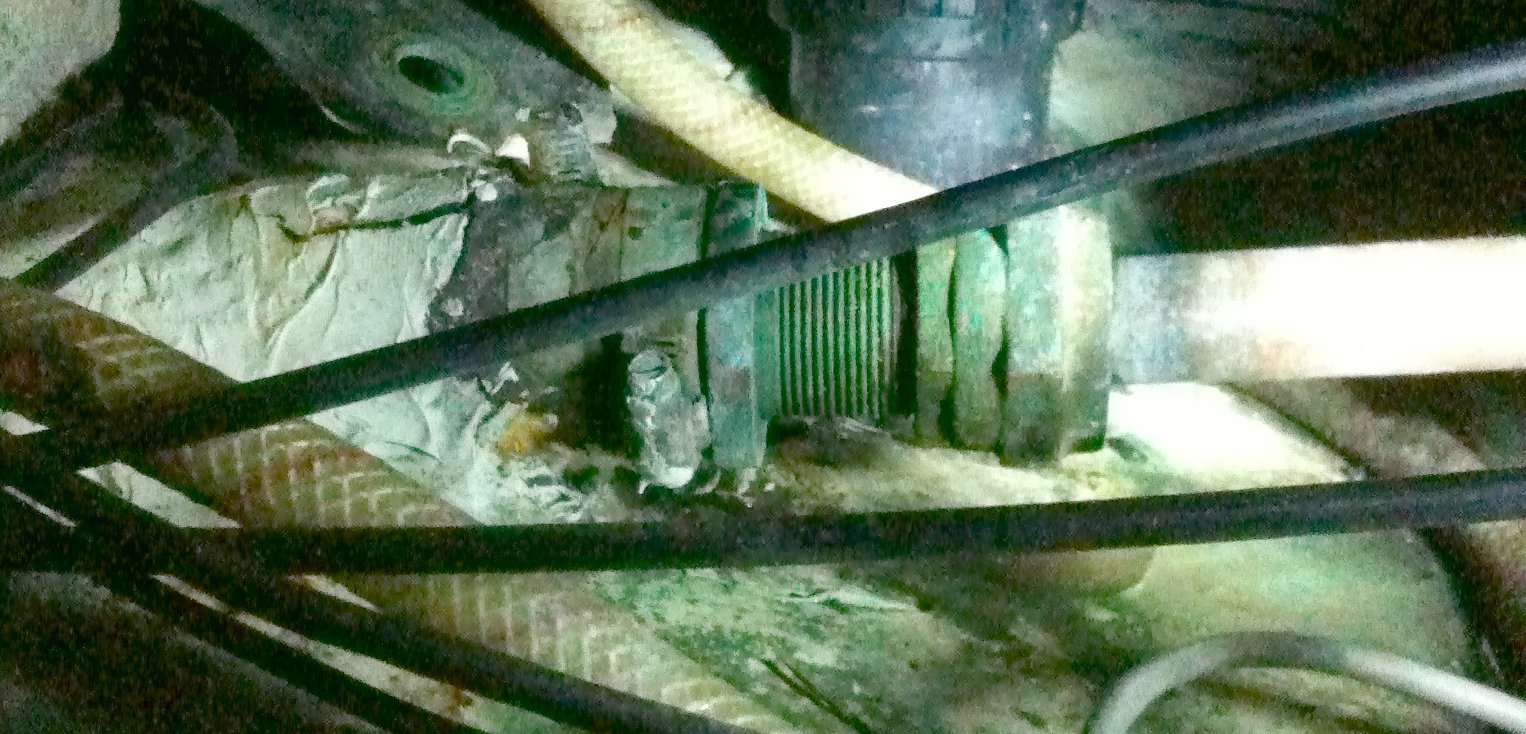

I would like to solicit some feedback from some people that a have more experience than I with a critical leaking part.

Basically, the shaft log is cracking and developed a slight leak.
One caveat here: The rear mating section of the hose is buried under some kind of white material in a make-shift repair. I only see one hose clap on the rear mateing section, which is buried under the white material.
The front mating section of the hose to the packing gland hase two hose clamps - as recommended.

Also the hose appears to be slightly bulging. So it is possible that the hose is expanding and cracking the "repair job". Eveidently, the PO did not want to pull the boat to address either a broken/loose shaft log or leaking hose.

Not sure why this is leaking now; however it is. But there is a slight weep present in the cracks.

No crazy or weird vibration present.

(Update: Shaft alignment is off at the bottom of the transmission coupling by about 1/8". Yikes...ordering new engine mounts now.

Any input as far as reparing this would be very appreciated.

Here are my questions:
-Would it be possible to eliminate the fiberglass log and convert to a broze through-hull bracket?
-Has anyone done this?
-Has anyone seen a tutorial on how to repair this?
-Are there any pictures of a MK1 Catalina 36 shaft log. I would lik to see how one is suppposed to look. (Remember, mine's buried in Marine-Tex or something like that!)

I have been doing research, but all I see are descriptions - vague descriptions at that of the shaft log.

Any help would be very-much appreciated!

Thanks, All!

Mitch

1986 Catalina 36 MKI
S/V "Blessing"
Kema, TX
Hull: #584
M25 w/ Oberdorfer Conversion


TomSoko's picture
TomSoko
Offline
Joined: 2/15/07
Posts: 978

Mitch,
I've answered some of your questions already on the other message board, but I thought I would post a picture of what the shaft log looks like, WITHOUT a can of goop on it! You definitely need to replace the hose, and while you are at it, the 4 hose clamps. It's time. I don't think that a bronze or other shaft tube is possible with the way the hull is designed. You might want to give a call to Gerry Douglas at CY. He's the VP of Engineering, and he designed our boats. You should be able to scrape or cut off the white goop, repair the shaft log if necessary with epoxy and/or fiberglass cloth, and clamp on a new piece of hose. It's 1-5/8" ID, by the way. Might as well replace the packing in the stuffing box with gore-tex while you have everything apart. You will have to pull the boat for this project. The picture below shows a PSS instead of a stuffing box, but you can see the shaft log entering the hull. The shaft log ends just about at the bellows of the PSS. The aft two hose clamps are firmly on the shaft log. As for changing the motor mounts, I think the only thing you have to disconnect is the exhaust riser from the aqualift muffler. The hoses and wires should have enough slack in them to lift first the front end, then the aft end of the engine. I used a come-a-long (sp?) suspended from a 4x4 across the companionway, and it was easy to do. Precise control. If you haven't bought the new mounts already, you might want to consider getting Vetus K75 mounts. Other than having to slightly enlarge one mounting hole on each mount, they are an exact fit for the engine, and are softer than the OEM mounts. Much less vibration and noise transmitted to the hull. Hope this helps.
